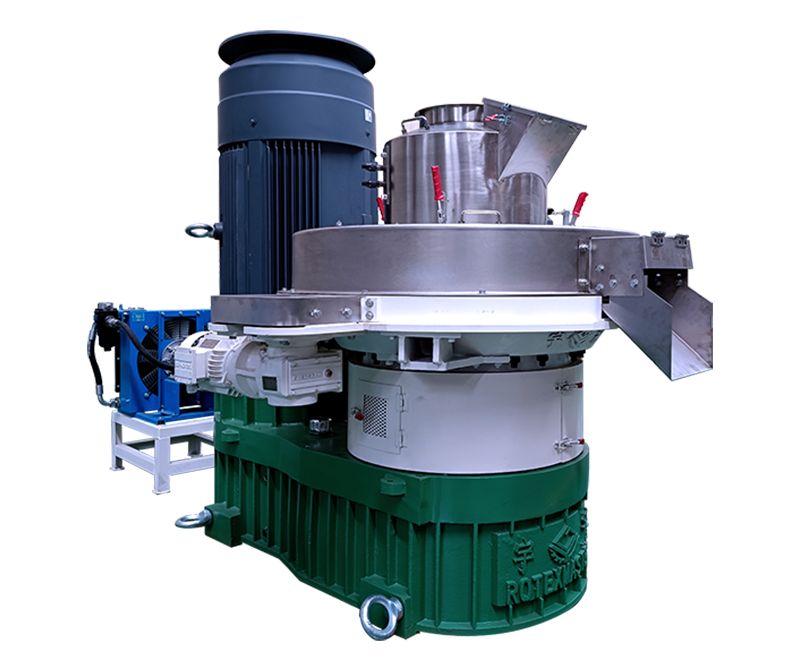

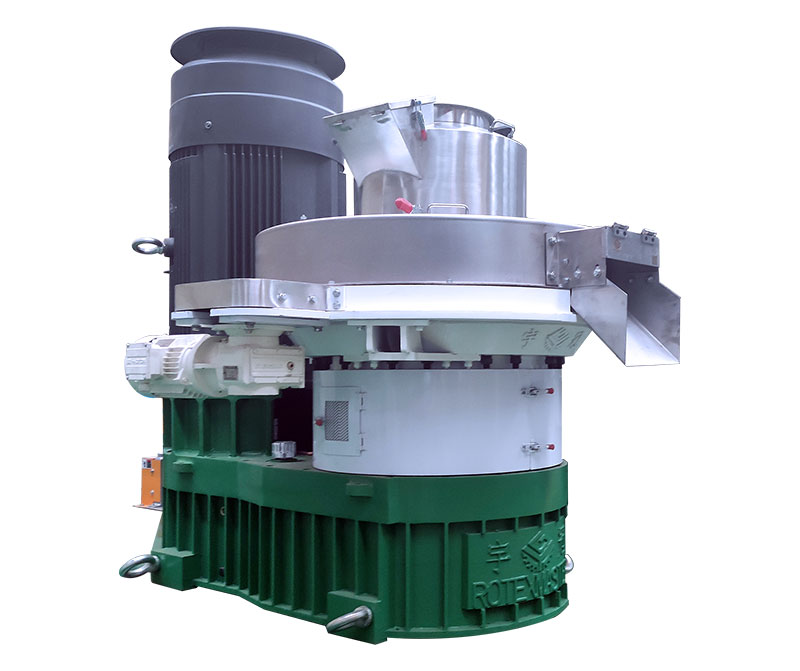

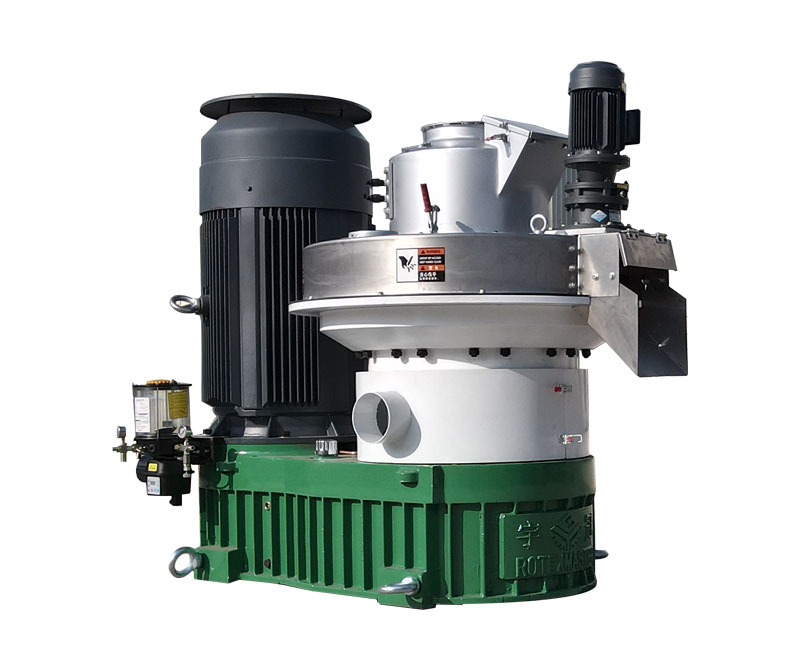

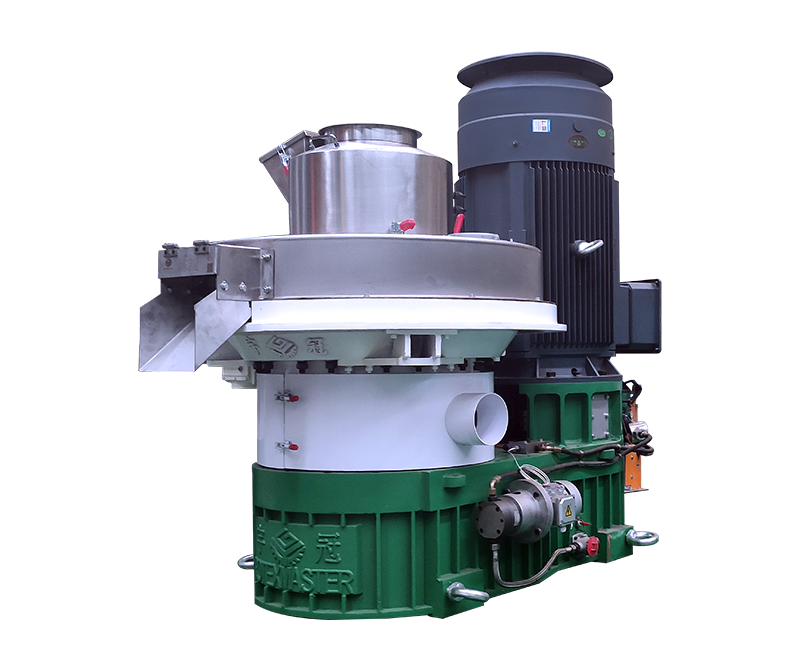

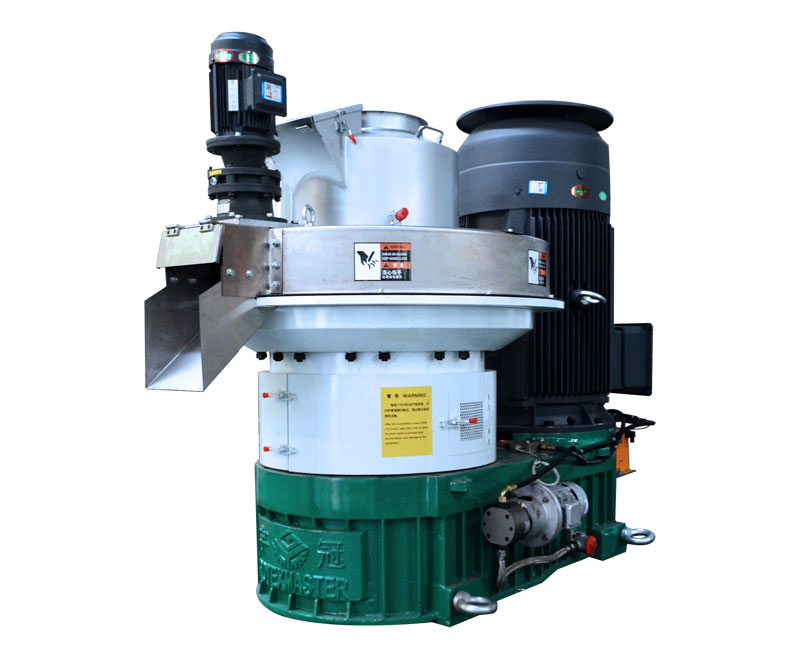

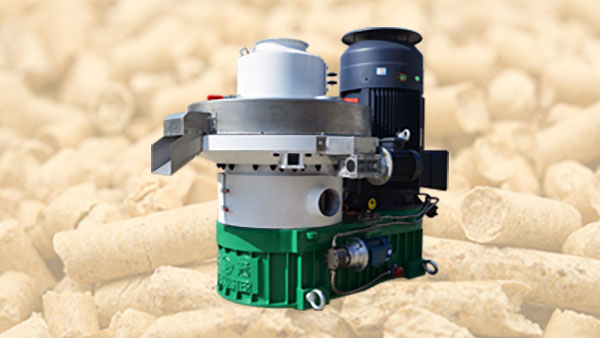

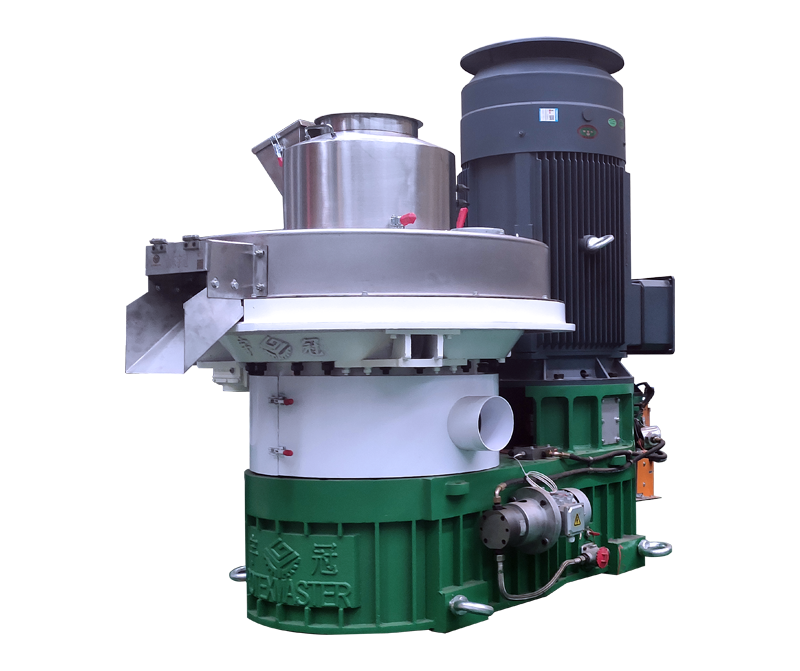

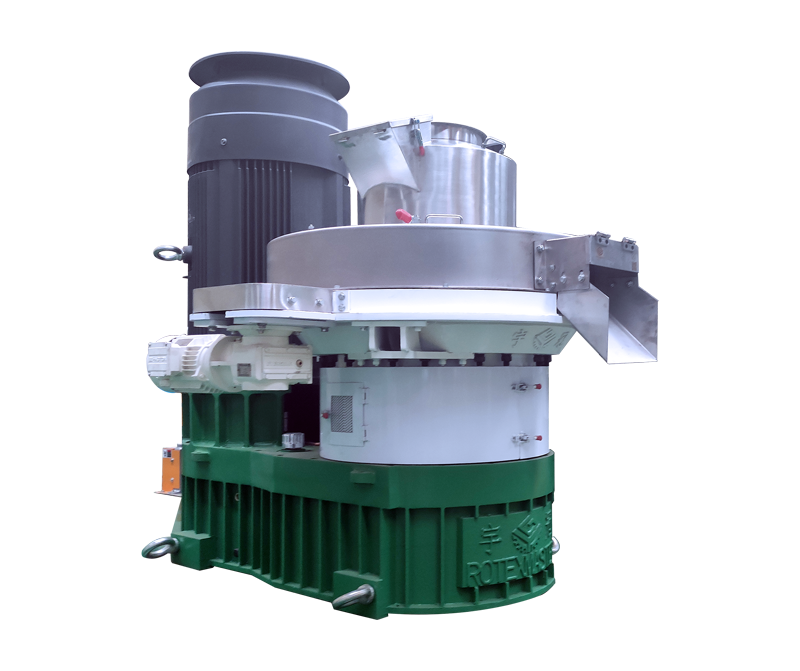

Wood Pellet Machine

The rotexmaster new generation vertical wood pellet machine(also wood pellet mill) is the latest generation wood pellet machine in China. The wood pellet machine adopts a large modulus hard toothed helical gearbox, strengthened spindle, strong power output, equipment stable operation, low failure rate, low production cost.

Wood pellet machine suitable for: eucalyptus, pine, birch, poplar, fruit, crop straw, bamboo chips, rice husk, waste wood plate, etc

The finished pellets is biomass energy as biofuel, which can replace coal, oil, gas, etc., widely used in power plant, boiler, and heating system.

Details:

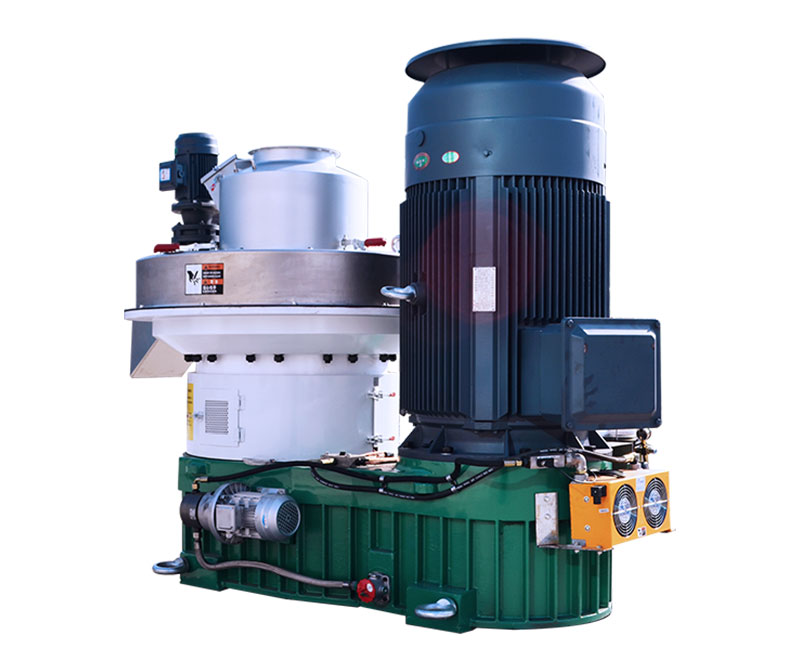

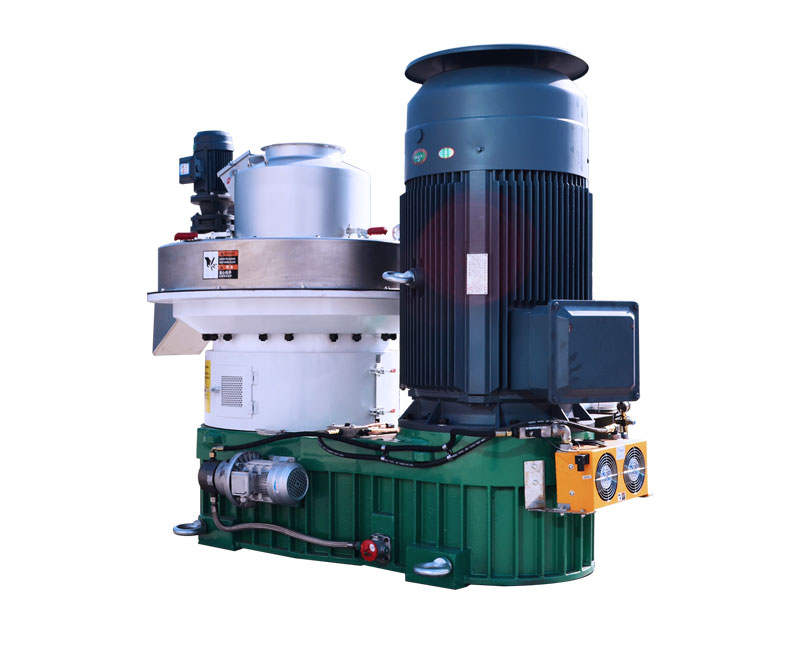

Wood Pellet Machine

Advantages of the new generation of wood pellet machine:

The new vertical centrifugal pellet machine is the latest pellet machine in China. The pellet machine adopts a large modulus hard toothed helical gearbox, strengthened spindle, strong power output, equipment stable operation, low failure rate, low production cost. It is the preferred machine model in the biomass industry.

1. The mold is placed flat, and the feeding method is vertical direct feeding, which avoids material blockage, has a wide range of material adaptability and strong heat dissipation.

2. Core components: The mold is made of wear-resistant stainless steel, vacuum furnace carburizing heat treatment, uniform heat treatment hardness, and strong wear resistance. The mold is vertical double-layer, which improves utilization, reduces costs, and has the highest cost performance.

3. The motor and gearbox are connected through a plum blossom coupling, which is easier to disassemble and maintain. The gearbox has three-stage reduction and strong load-bearing capacity. The unique separation design of the main shaft ensures the concentricity of the equipment and reduces the failure rate of the equipment.

4. The machine has its own lubrication and cooling system, no need to stop, and the whole machine can achieve 24-hour fully automatic intermittent lubrication, extending the life of the equipment's wearing parts.

5. The unique external design of the rotary device of the material feeding system means that the slewing bearing is no longer corroded by the high-temperature steam in the machine's discharge cover, which greatly extends the service life of the rotary device of the material feeding system.


Raw material:

Wood

Wood

Sawdust

Sawdust

Straw

Straw

Shell

Shell

EFB

EFB

Bamboo

Bamboo

What can biomass pellet do ?

Boiler

Boiler

Fireplace

Fireplace

Heating system

Heating system

Power plant

Power plant

Details:

ModelPower(kw)Pellet Size(mm)Capacity(t/h)Size(mm)Weight(t)
YGKJ56090/1106-121-1.52200*1300*16005.8t
YGKJ700132/1606-122-32400*1400*18007.8t
YGKJ8802206-123-43000*1500*230012t

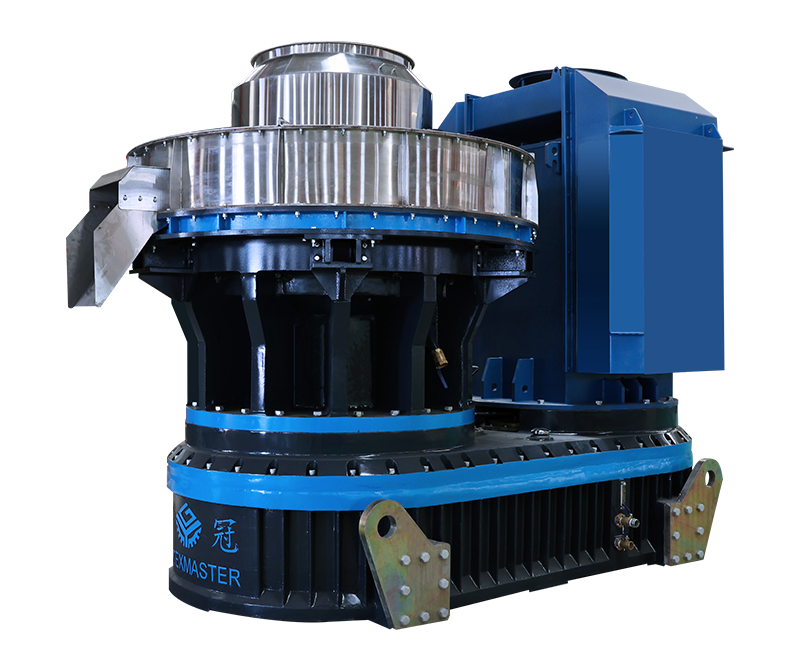

YGKJ1280880/10006-1210-154960*2950*355050t



Accessories introduction:

Ring Die

Ring Die

Air Cooled Cooler

Air Cooled Cooler

Lubricating Grease Pump

Lubricating Grease Pump

Mould

Mould

Export Case:

10t/h sawdust pellet production line in Malaysia

10t/h sawdust pellet production line in Malaysia

8t/h wood pellet production line in Philippines

8t/h wood pellet production line in Philippines

10t/h wood pellet production line in Thailand

10t/h wood pellet production line in Thailand

12t/h wood pellet production line in Malaysia

12t/h wood pellet production line in Malaysia

Exhibitors:

2019.3 Japan Exhibition

2019.3 Japan Exhibition

2019.6 Indonesia Exhibition

2019.6 Indonesia Exhibition

2019.12 Russia Exhibition

2019.12 Russia Exhibition

Exhibition

Exhibition

FAQ:

Q: Are you manufacturer of trading company?

We are manufacturer, also with marketing department and R&D center.


Q: I am newer to biomass industry, how to design the suitable plant?

Do not worry about that. We already helped many beginners. We provide optimal project design according to every customer’s needs.


Q: Do you offer installation and training?

Yes. We can dispatch technicians to customers' site to help install equipment and train how to operate.


Q: How can you guarantee the after-sales service?

We have professional After-sales service center with experienced and skillful engineers. When problem of equipment occurs, our engineers will be assigned to your site to solve problems timely. Also spare parts can be provided timely due to oversea warehouses.


Q: Are there some machines in my area I can observe?

Rotex Master have machines in many countries, if there are machines in your country, we can contact the customer to arrange a visit for you.

Q: Which kinds of raw material can be used for making pellets?

Sawdust (waste wood chips/shavings), other forest waste, agricultural straw, stalk, bamboo, peanut shells, rice husk, bagasse, alfalfa, palm fiber etc.


Q: What is the main process for making pellets?

Coarse Crushing Section(Splitter, Wood Chipper)—Drying Section—Crushing Section—Pelletizing Section—Cooling Section—Packing Section


Q: What is your work flow?

Inquiry—Quotation—Communication—Order Confirm & Payment Received—Production—Production Tracing & Inspection—Check Every Product—Book Vessel & Arrange Delivery—Documents Post/Telex Release—Customs Clearance—Arrange Delivery to Clients` Site—Discharge Goods—Arrange Installation & Debugging


Q: How do I pay to you?

(1) 30% deposit of the total amount to be paid by T / T in 5 working days after signing the sales contract, the balance of 70% will be paid before the goods leave the factory.

(2) 30% deposit of the total amount to be paid by T / T 5 working days after signing the sales contract, the balance of 70% can be paid by L / C before the factory leave goods.

(3) We can negotiate specific payment terms with our client.


Q: How long is the delivery time?

For standard machines, that would be 25-30 working days; For non-standard machines and customized machines according to customers' specific requirements, it would be about 30 working days.

we work with the biggest freight forwarder in North China. if you need to appoint other freight measures, we can arrange them because we have rich experience and sufficient funds to handle.


Q: How about the documents after shipment?

After shipment, we wi ll send all original documents to you by DHL, including Bill of Lading, Commercial Invoice, B / L, and other certificates as required by customers.
